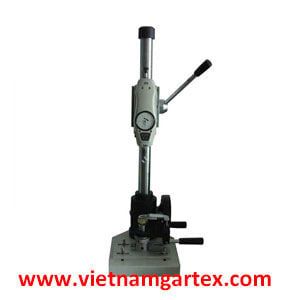

Máy test lực nút FY200 Digital Snap Button

Máy test lực nút FY200 Digital Snap Button

FY200 Digital Snap Button Snaptester / FYI Vietnam
Hãng sản xuất: Fanyuan Instrument

Thông tin sản phẩm:

Specifications

1.FY200 Digital Snap button snap tester
2.To assess the snap attachment strength of button

ITEM:



FY200 Digital Snap  button snap tester

MODEL NO.

 FY200 (Dial Type)

FY200D (Digital Type)

Application:

FY200 Digital Snap button snap tester . To assess the snap attachment strength of button which is very important to design and manufacturer of garments of infants and children’s wearing. The measurement of the uniform force applied to the snap attachment shall be recorded by means of a force-measuring device.

Related Standards:

STANDARDS

ASTM D 4846

Features:

1, The meter made by IMADA^TM in Japan, with high accuracy.

2,  Grasp clamp made by stainless steel, durable and easy to operate.

3, Many grasps clamp attached, can perform many snap strength tests.

4,The structure special designed, and the test result with high accuracy.

Key Specification:

Load capacity	30kgf
Diameter of Pressing ring	15mm (about 23 ligne) 25mm (about 39 ligne)
Readability	0.1kgf
Instrument Dimension	240×290×750mm(L×W×H)
Instrument Weight	40kg
