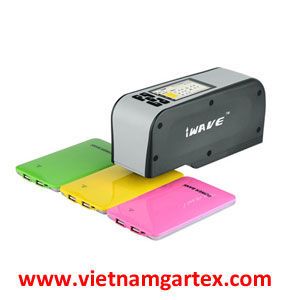

Máy so màu cầm tay Colorimeter WR32 iWave
Mô tả
Máy so màu cầm tay Colorimeter WR32 iWave
Precision Colorimeter WF32 / iWaveVietnam
Hãng sản xuất: iWave
iWave
là hãng của TQ, chuyên cung cấp máy đo phân tích màu sắc cho các vật
liệu như giấy, vải, nhựa.. Chúng tôi xin giới thiệu máy so màu cầm tay
Colorimeter WR32Thông tin sản phẩm:
|
Model |
WF32 |
|
Display Mode |
CIELAB、CIELCH、CIEXYZ、CIELUV、HunterLAB、sRGB |
|
Color Difference Formula |
△E*ab、△ECMC、△EISO、△ECIE94、△EFCMⅡ、△ELuv、△Ehunter、△EsRGB |
|
Yellowness and Whiteness |
Ganci whiteness、 ISO brightness、 YI yellowness |
|
Illumination Condition |
CIE Recommendation：8/d |
|
Light Source |
LED blue excitation |
|
Sensor |
Photodiode array |
|
Measurement Caliber |
φ4mm/φ8mm/φ16mm Alternative |
|
Measurement Condition |
Observer：CIE 10° Standard observer |
|
Measurement Range |
L: 0 to 100 |
|
Repeated Accuracy |
△E<0.03 (take the deviation average after 30 times measuring the whiteboard) |
|
Table Difference |
△E<0.2 |
|
Measurement Interval |
0.5 Sec. |
|
Average Measuring Function |
Average measuring frequency: 1-32 times |
|
Color Simulation Function |
yes |
|
Storage Capacity |
Type sample data : 100 with testing sample data:
20000 |
|
Language Patterns |
English/Simplified Chinese/Traditional Chinese |
|
Quality Control Software |
《Color-Analysis System》 software |
|
Battery Charging Time |
8 hrs |
|
Battery |
Li-ion battery, 5000 times Measurement |
|
Lifetime of Bulb |
5 years more than 1.6 million measurements |
|
Display Screen |
TFT true color 2.8inch@(16:9) Resolution ratio:400x240 |
|
Interface of External |
USB2.0 (USB-B型)- data communication with 《color analysis system》software RS-232 (115200bps)- connected with micro printer |
|
Working Temperature Range |
0℃-40℃（32
|
