Máy so màu cầm tay Colorimeter WR30 iWave
Mô tả

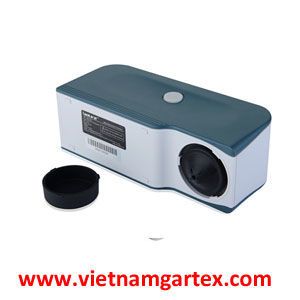

Máy so màu cầm tay Colorimeter WR30 iWave
Precision Colorimeter WF30 / iWaveVietnam
Hãng sản xuất: iWave
iWave
là hãng của TQ, chuyên cung cấp máy đo phân tích màu sắc cho các vật
liệu như giấy, vải, nhựa.. Chúng tôi xin giới thiệu máy so màu cầm tay
Colorimeter WR30Thông tin sản phẩm:
|
Model |
WF30 |
|
Display Mode |
CIELAB、CIELCH |
|
Color Difference Formula |
△E*ab |
|
Illumination Condition |
CIE Recommendation：8/d |
|
Light Source |
LED blue excitation |
|
Sensor |
Photodiode array |
|
Measurement Caliber |
φ4mm/φ8mm/φ16mm Alternative |
|
Measurement Condition |
Observer：CIE 10° Standard observer |
|
Measurement Range |
L: 0 to 100 |
|
Repeated Accuracy |
△E<0.05 (take the deviation average after 30 times measuring the whiteboard) |
|
Table Difference |
△E<0.2 |
|
Measurement Interval |
0.5 Sec. |
|
Storage Capacity |
Type sample data : 100 with testing sample data: 200 |
|
Language Patterns |
English/Simplified Chinese |
|
Battery Charging Time |
8 hrs |
|
Battery |
Li-ion battery, 5000 times Measurement |
|
Lifetime of Bulb |
5 years more than 1.6 million measurements |
|
Display Screen |
TFT true color 2.8inch@(16:9) Resolution ratio:400x240 |
|
Interface of External |
USB2.0 (USB-B型)- data communication with 《color analysis system》software RS-232 (115200bps)- connected with micro printer |
|
Working Temperature Range |
0℃-40℃（32℉-104℉） |
|
Storage Temperature Range |
-20℃-50℃（-4℉-122℉） |
|
Humidity Range |
Relative humidity less than 85%,without condensation |
|
Weight |
700g |
|
Size |
199*68*90mm |
|
Size of Exterior Package |
400*240*340mm |
|
Standard Accessories |
3000mAH Li-ion battery/AC adapter/USB Data line/CD《Color analysis software》/Usermanual/Warranty card |
