Máy phân loại thành phần lỗi trong sợi YG074

Máy phân loại thành phần lỗi trong sợi YG074

Yarn Faut Classifying System YG074 / FYI Vietnam
Hãng sản xuất: Fanyuan Instrument

Thông tin sản phẩm:

Specifications

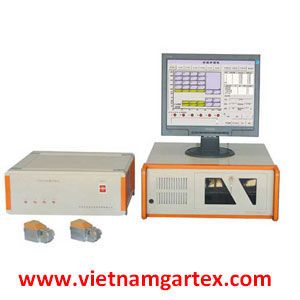

YG074 Yarn fault classifying system
1.Yarn testing equipment
2.Yarn classification system

Application:

YG074 Yarn Classification System. You can check cleared and un-cleared yarn, providing classification of thick and thin places, as well as checking infrequently occurring yarn defects and foreign fibers in the yarn. You can determine the optimal limits for yarn clearing, analyze new material and competitors products – and improve the quality and value of your yarns.

Features

1       Detecting and analyzing seldom-occurring yarn faults, and classifying yarn faults.

2       Controlled by CAN-bus mode, the testing system is stable, reliable and good anti-interferential.

3       Each testing unit has the function of self calibration. Each testing head can be controlled individually.

4        Represent testing result with Scatter plot, which enables precise setting of yarn clearers.

5        Adopting “absolute measurement” to determine the yarn faults, full digital processing.

6        Yarn faults statistics adopt Conventional counting method and absolute counting method, and change it to the yarn faults in 100KM automatically.

7        Clearing channel can be preset and length can be recorded automatically.

8        With database processing, Convenient to copy, analyze, display and print the testing data.

9        It can cut faults of specified channel, and have clearing function according to the channel

10        Detecting yarn count (wrong count monitoring), alarm in time when has trouble.

11        Assessment standard can be set by customization.

Key Specification:

1        Measurement Principle            Capacitance detecting

2        Yarn count range                     4~112tex(MD15),8~200tex(MD20)

3        Winding Speed                       300~1800m/min

4        Measuring Heads                    6~12

5        Power Supply                         220V±10%,50Hz±5%,Power ≤300W.

6        Dimension                              500×400×500mm(L×W×H)

7        Weight                                   60kg
