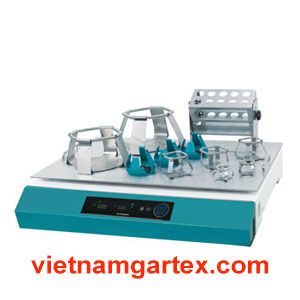

Máy lắc tròn OS-4000 OS-7100 OS-7200 Orbital Shaker Lab Companion
Mô tả
Open-air Shakers (General)
Model OS-4000 / OS-7100 / OS-7200
Powerful driving system with a durable body structure increases shaking capacity.
Thay thế cho dòng cũ là SK-600, SK-71
Origin: Korea - Hàn Quốc
Thông số kỹ thuật:
| Model | OS-4000※ | OS-7100 | OS-7200 | ||
|---|---|---|---|---|---|
| Control system | PID feedback control | ||||
| Display | VFD | ||||
| Shaking system | Motion type | Orbital | |||
| Amplitude size (mm / inch, dia.) | 19.1 / 0.75 (standard) | 25.4 / 1 (adjustable) | 25.4 / 1 | 50.8 / 2 | |
| Speed range 2) (rpm) | 20 to 500 | 20 to 450 | 30 to 500 | 30 to 300 | |
| Accuracy | ±1% of set speed (≥100rpm) / ±1 (≤100rpm) | ||||
| Timer | 1 min. to 999 hr. 59 min. | ||||
| Max. load (kg / Ibs) | 14 / 30.9 at 500 rpm 21 / 46.3 at 400 rpm | 10 / 22.0 at 450 rpm 21 / 46.3 at 300 rpm | 10 / 22.0 at 500 rpm 25 / 55.1 at 400 rpm | 23 / 50.7 at 300 rpm 35 / 77.2 at 200 rpm | |
| Dimension | Platform (W×D) (mm / inch) | 450×450 / 17.7×17.7 | 755×520 / 29.6×20.5 | ||
| Body 1) (W×D×H) (mm/inch) | 510x632x156 / 20.1x24.9x6.1 | 755x627x151 / 29.7x24.7x5.9 | |||
| Net weight (Kg / lbs) | 43 / 94.8 | 117 / 257.9 | |||
| Electrical requirements (230V, 50 / 60Hz) | 0.3A | 0.4A | |||
| Cat. No. | AAH3D1315K | AAH3D1415K | AAH3D1515K | ||
| Electrical requirements (120V, 50 / 60Hz) | 0.6A | 0.8A | |||
| Cat. No. | AAH3D1365U | AAH3D1465U | AAH3D1565U | ||
Phụ kiện:
- Universal platforms
- Test tube racks
- Flask clamps (stainless steel/plastic): loại 50ml, 100ml, 250ml, 300ml, 500ml,...up to 6l
- Funnel clamps
- Microplate holders
