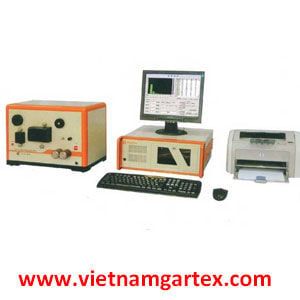

Máy kiểm tra lẫn tóc trong sợi YG173A
Mô tả
Máy kiểm tra lẫn tóc trong sợi YG173A
YG173A Yarn Hairiness Tester/ FYI Vietnam
Hãng sản xuất: Fanyuan Instrument
Thông tin sản phẩm:Specifications
1,Yarn Hairiness Tester2,Textile testing machine
3. HIgh performance
MODEL NO.
YG173A
Application:
YG173A Yarn Hairiness Tester is
a high precision textile testing machine for determining the hairiness
distributional pattern of yarn. It mainly used in the textile enterprise
for the detection of finished fibre yarn and sized yarn. It is very
important for quality control of yarns
Features:
l Suitable for yarns of various fibre material, such as cotton, wool, flax, silk spinning, blending, etc;
l Adopt international general test method: projection counting method;
l Use IR source and test circuit with high stability to avoid external light interference;
l Full digital processing, stable test data, high reliability, good consistency;
l Adopt inside and outside positioning mode, avoid the effect to the test data from the yarn evenness and hairiness deformation;
l With yarn suction device to prevent the yarn winding;
l Test data can be automatically stored by the database.
Key Specification:
l Count range 4tex-160tex
l Test speed 30m/min, 60m/min
l Cutting length 10~100m arbitrary set
l Test times of series test 1~100 arbitrary set
l Hairiness test length 1, 2, 3, 4, 5, 7, 10, 12mm can be tested at one time
l Power supply single phase, AC220V±10%, 50Hz, 300-400w
l Weight approx. 40kg
l Dimensions
Detector 430×480×350mm
Controller 510×440×190mm
Monitor 440×460×160mm
Printer 350×370×220mm
Spun yarn frame 240×180×340mm
