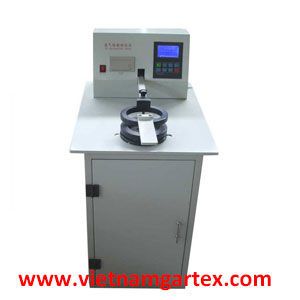

Máy kiểm tra độ thông thoáng khí của vải YG461E

Máy kiểm tra độ thông thoáng khí của vải YG461E

YG461E Digital Air Permeability Tester / FYI Vietnam
Hãng sản xuất: Fanyuan Instrument

Thông tin sản phẩm:

Specifications

Digital air permeability tester
Air permeability tester
Fabric air permeability tester
Model No.YG461E

Digital air permeability tester YG461E

air permeability tester, digital air permeability tester,fabric air permeability tester



Application:

YG461E Digital Air Permeability Tester is suitable for measuring the permeability of fabrics to air, which can be applicable to most types of fabrics, including industrial fabrics for technical purposes, nonwovens and made-up textile articles that are permeable to air.



Related Standards:

STANDARDS	GB/T 5453	ISO 9237	ASTM D737	AFNOR G07-111
	BS 5636	DIN53887	JIS L1096-A

 Note: this tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.



Features:

(1)      Better Cost-effective and Quality Design

1         Large measuring range (0.5~10000mm/s), no need to change test area under normal circumstances

2        Special designed sample holder ensures that the sample is fixed

3        All orifice plates have been calibrated point-by-point in full testing range

4        Branded high accuracy pressure sensor

5        Different sample effective test area is optional (5cm² , 20 cm² , 25 cm² , 38 cm², 50 cm² , 100 cm² )

Tips:

Standard	Test Area	Pressure
GB/T 5453	20cm²(5cm²,50cm²,100cm²)	100Pa/200Pa
ISO 9237	20cm²(5cm²,50cm²,100cm²)	100Pa/200Pa
DIN 53887	20cm²	100Pa/160Pa/200Pa
ASTM D 737	38cm²	13mmH2O (=0.5W.C 125Pa)
AFNOR G07-111	20cm²(50cm²)	196Pa





6       Different orifice plates are available (Φ0.5mm, Φ1.0mm, Φ1.5mm, Φ2.5mm, Φ4.5mm, Φ8.0mm, Φ14.5mm, Φ26mm)





7        Displayed by large high-definition LCD displayer, equipped with inner printer



(2)      More Humanization Design

1         Directly test on the sample, no need to cut samples





2         Automatically remind when samples are not clamped well

3        Automatically identify the diameter of orifice plate

4        Automatically remind operator to change smaller or bigger orifice plate





5        With the function of saving data when power down

6        Comprehensive and detailed test results





Key Specification:

1        Pressure difference range                    50~500Pa

2         Measuring range                                   0.5~10000mm/s (L/m².s)

3         Measurement error                              ≤±3%

4        Sample thickness                                 ≤5mm

5        Sample effective test area                   5cm², 20 cm², 25 cm², 38 cm²,

                                                                            50 cm², 100 cm²

6         Diameter of orifice plate                      Φ0.5mm, Φ1.0mm, Φ1.5mm, Φ2.5mm,

                                                                             Φ4.5mm, Φ8.0mm, Φ14.5mm, Φ26mm

7        Power supply                                         220V, 50Hz , 370W

8        Dimension                                              720mm×500mm×900mm (L×W×H)

9        Instrument weight                                 56kg
