Máy kiểm tra độ co của sợi DW0332

Máy kiểm tra độ co của sợi DW0332

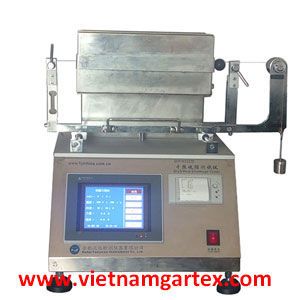

DW0332 Shrinkage Force Testing Machine / FYI Vietnam
Hãng sản xuất: Fanyuan Instrument

Thông tin sản phẩm:

Accurately test the hot air thermal shrinkage property (shrinkage rate & shrinkage force) of tire cord, yarn, polyester, etc.

Application

 Dry & Heat Shrinkage Tester .This instrument is developed to accurately test the hot air thermal shrinkage property (shrinkage rate & shrinkage force) of tire cord, yarn, polyester, cotton thread and textile and etc. under a certain temperature by using high-precision temperature control system and measuring system.

Related Standards

ASTM D4974-02,GB/T 9102-2003,GB/T 9101-2002,GB/T 19390-2003.



Specification

Model No.	DW0332	Heating range	Room temp. to 250°C
Sample length	250±1mm	Temperature accuracy	±0.1°C
Shrinkage accuracy	0.1%	Timer range	0~99.99min
Shrinkage force range	0~25N	Power supply	AC220V 50Hz
Shrinkage force accuracy	0.1N	Gross weight/Net weight	26kg/21kg
Instrument dimensions L×W×H	49×40×44cm	Package dimension L×W×H	60×50×55cm
