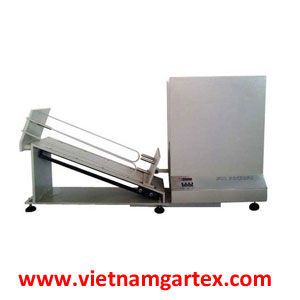

Máy kiểm tra độ chịu chống thấm của vải DW5071

Máy kiểm tra độ chịu chống thấm của vải DW5071

Fabric Down-Proof Impact Tester DW5071 / FYI Vietnam
Hãng sản xuất: Fanyuan Instrument

MODEL NO.

DW5071  Fabric down-proof impact tester

APPLICATION

Fabric down proof impact tester adopt impact method to test puncture resistance performance for winter clothes, quilt lining which fill with fiber or feather or both.

A cylindrical cushion is made from the fabric to be tested for its down-proof properties and is filled with a given amount of feather and down material or its mixtures. Sliding on an inclined plane, this cushion is moved by means of a pinned bar against a pinned plate, and is thus compressed. After the impact, the cushion is rolled back following the backward-moving pinned impact rake, and recovers its shape. This procedure is continuously repeated until a certain number of impacts are reached.

STANDARDS

Note: this Fabric down-proof impact tester can conform to but not limit to the standards above, for more standards conformance, please contact us.

FEATURES:

l Steel frame, firm and stable;

l Adopts Crank-rocker mechanism to make the moveable plate move as 35 times/min;

l Two plates: one is fixed with on firmly mounted pin, and the other is moveable which have 3 pins on it to accomplish impact;

l LED display and the counter can be preset;

l Automatically stopped by the counter after reaches the preset value.

Specification:
