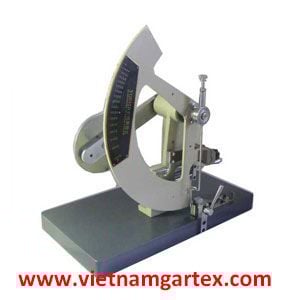

Máy kiểm tra độ bền vết rách vải YG033A/B

Máy kiểm tra độ bền vết rách vải YG033A/B

YG033A/B Elmendorf Tearing Tester / FYI Vietnam
Hãng sản xuất: Fanyuan Instrument

Thông tin sản phẩm:

Specifications

Elmendorf Tearing Tester.
To determine the ballistic tearing strength of textiles, non-woven fabric, paper or board.

Item:  Elmendorf Tearing Tester

Applications:

Elmendorf Tearing Tester. To determine the ballistic tearing strength of textiles, non-woven fabric, paper or board. Range from 32000 to 128000 Millinewtons with suitable pendulum.

Related standards:

Elmendorf Tearing

ASTM D1424

BS EN ISO 13937-1

Note: this tester can conform to but not limit to all the standards above, for more standards conformance, please contact us

Features:

lThree weight pendulums attached, large range of the tearing strength;

Key Specifications:

Range of Tearing Force	YG033A:0-16N,0-32N,0-64N YG033B: 0-32N, 0-64N, 0-96N, 0-128N
Accuracy	≤±1 Full scale
Incision Length	20±0.2mm
Rip Length	43mm
Sample Dimension	100mm×63mm(L×W)
Instrument Dimension	400×210×390mm(L×W×H)
Instrument Weight	27Kg
Elmendort Tearing tester	YG033A
Elmendort Tearing tester	YG033B
