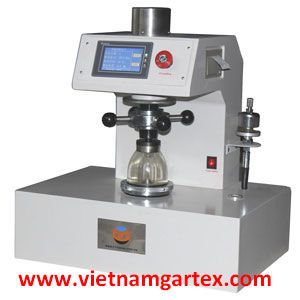

Máy kiểm tra độ bền tách xơ của vải YG032D
Mô tả
Máy kiểm tra độ bền tách xơ của vải YG032D
YG032D Bursting Strength Tester/ FYI Vietnam
Hãng sản xuất: Fanyuan Instrument
Thông tin sản phẩm:ITEM:
Automatical Fabric Bursting Tester
Model:
YG032D
Application:
Automatical Fabric Bursting Tester . For determining the bursting strength of woven or knitted fabrics, non-woven, paper, leather and board by application of a hydraulic load under a rubber diaphragm of a specific area. Provide with a digital readout of pressure with peak value hold facility, renewable rubber diaphragms, and manual clamping device with acrylic bell, forward reverse and neutral drive system. Provide accurate elongation information of fabrics, up to 0.1mm.
Related Standards:
standard | ASTM D3786 |
Note: this Automatical Fabric Bursting Tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.
Key Specification:
| Inner diameter of holder | φ30.5±0.05mm |
| Diaphragm dia | φ80±1mm |
| Diaphragm thickness | 0.9mm |
| Range of bursting strength | 0~6MPa (60Bars) |
| Bursting strength accuracy | ≤±1% |
| Range and precision of elongation | 0.1~40mm ±0.1mm |
| Bursting duration | 0.1-99.9S |
| Load speed | 18 grade |
| Hydraulic fluid | glycerin with concentration 85% |
| Power supply | Ac220V 50Hz (or specified by user) |
| Instrument dimension | 710×540×800 mm(L×W×H) |
| Instrumentweight | 80kg |
Fabric Bursting Strength Tester | YG032D |
