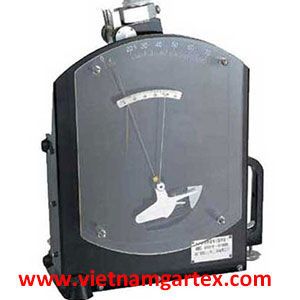

Máy kiểm tra độ bền bó xơ bông YG011

Máy kiểm tra độ bền bó xơ bông YG011

YG011 Bundle Fiber Strength Tester/ FYI Vietnam
Hãng sản xuất: Fanyuan Instrument

Thông tin sản phẩm:

Specifications

YG011 bundle fiber strength tester is an instrument to check the holding strength and elongation at breakage of fiber tufts

ITEM

YG011 Bundle Fiber Strength Tester (holding strength and elongation)

MODEL NO.

YG011

APPLICATION

YG011 bundle fiber strength tester is an instrument to check the holding strength and elongation at breakage of fiber tufts.

Holding strength reading on a graduated scale from 0 to 7 kPa (step 0.1kPa), elongation reading on a graduated scale from 0% to 50%.

STANDARDS

Standard

ISO 3060

Note: this tester can conform to but not limit to the standards above, for more standards conformance, please contact us.

FEATURES

l Calibrate each stelometer by force measuring and elongation devices that are special designed by our company only, ensure pointer indications (force value and elongation) are match to real value and keep test result stable and high accuracy;

l Special designed table clamps and pressley clamp (we are supplier for USTER) can hold fiber tufts effectively, and avoid slipping or affect test as hold tight;

l Read test values of breaking strength and elongation directly from two scales after finishing test;
l After fiber tufts breaks, there is no malfunction mistakes;

l Test result with high accuracy and with good correlation with yarn strength.

Standard configuration of bundle fiber strength tester:

Thickness   of sample holding clamp	11.8mm
Thickness   of separator	3.2mm
Test Range	Breaking Load 20N-70N Elongation 0-50% (3.2mm)
Applying   load speed	10N/s,   adjustable
Correction   Coefficient (approxi.)	0.9-1.1
Environment	Temperature be 20±2°C, Relative humidity be (65±3)%)
Dimension	320 x390   x160mm
Weight	10kg
