Máy kiểm tra độ ẩm trong vải DW290
Mô tả

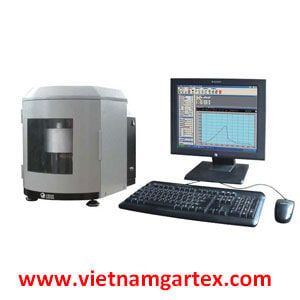

Máy kiểm tra độ ẩm trong vải DW290
Moisture management Tester DW290/ FYI Vietnam
Hãng sản xuất: Fanyuan Instrument
Thông tin sản phẩm:Application:
DW290 Moisture Management Test Apparatus is used to test and assess liquid moisture transport properties of fabric in multi-dimensions (called moisture management properties). It is applicable to quality control of fabric or garment.
Related Standards:
| GB/T 21655.2 | AATCC 195 |
Note: this moisture management test apparatus can conform to but not limit to all the standards above, for more standards conformance, please contact us.
Key Specification:
| Sample size | (90±1)×(90±1)mm |
| Diameter of upper and lower moisture sensor | Φ58.4mm |
Number of test ring | 7 |
| Space between rings | (5±0.05)mm |
| Contacting diameter of upper sensing needle | (0.54±0.02)mm |
| Contacting diameter of lower sensing needle | (1.2±0.02)mm |
| Water amount | (0.2±0.01)g |
| Test time | 120s |
| Pressure of test head | 6.65±0.05)N |
| Power supply | AC220V 50Hz 100W |
| Dimensions | 400×265×330mm (L×W×H) |
| Weight | Approx. 11kg |
