Máy kiểm tra chất lượng sợi YG381A
Mô tả

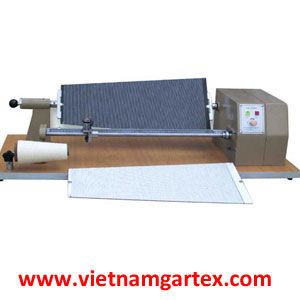

Máy kiểm tra chất lượng sợi YG381A
YG381A Yarn Examining Machine / FYI Vietnam
Hãng sản xuất: Fanyuan Instrument
Thông tin sản phẩm:ITEM:
Yarn Examining Machine
MODEL NO.
YG381, YG381M, YG381A
Application:
Yarn Examining Machine applies to assess the evenness, hairiness, neps and other imperfections in a representative sample of various yarn wound at a pre-determined yarn density onto a quadrate/tapered black board.
Related Standards:
STANDARDS | ASTM D2255 | GB/T 9996 |
Note: this yarn examining machine can conform to but not limit to all the standards above, for more standards conformance, please contact us.
Features:
l YG381M only conforms to FZ/T 20017 standard: testing method of wool yarn;
l Driven by synchronous motor, and digital controlling circuit, ensure uniform pitch during a test.
l Various pitch to satisfy comprehensive requirements of different yarn linear density.
l Equipped with alternative pre-tension (ref. picture).
l Auto-stop function.
l Adjustable winding speed.
l White “blackboard” for colored yarn (YG381A)
Key Specification of Yarn examining machine
Black board size | 220×250mm (L×W) (YG381) 300×225mm (L×W) (YG381M) 575mm (L) ×250mm (W) ×160mm (W) (YG381A) |
Yarn winding density | 7, 9, 11, 13, 15, 19wraps/cm (YG381, YG381A) 35, 45, 55, 65wraps/10cm (YG381M) |
Rotational speed | 10~400RPM (adjustable) |
Power supply | AC220V, 50Hz, 50W |
Dimension | 620×370×340mm ( For YG381) 1000×370×300mm (YG381A) |
Weight | 30Kg (YG381) 32Kg (YG381A) |
