Quick Details
- Place of Origin: China (Mainland)
- Brand Name: FYI
- Model Number: FY111L
- Power: Electronic
- Usage: Yarn crimp tester
- Textile Sizing Machine: Yarn crimp tester

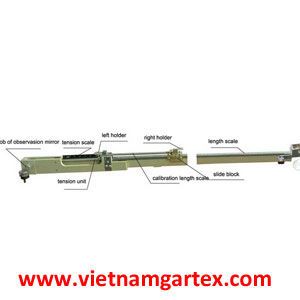

Máy đo sự uốn của sơ FY111L Crimp Tester
Mô tả
Máy đo sự uốn của sơ FY111L Crimp Tester
FY111L Crimp Tester/ FYI Vietnam
Hãng sản xuất: Fanyuan Instrument
Thông tin sản phẩm:Packaging & Delivery
| Packaging Details: | Standard packaging |
|---|---|
| Delivery Detail: | 4 WEEKS MAX |
Application:
Yarn crimp tester is designed to measure yarn crimp or take-up in woven fabrics and stitch or course lengths in knitted fabrics. Detach the yarn from a piece of given-length fabric, unbending it under given force and measuring its length. To calculate the crimp in yarn affected by knitting or weaving, to determine actual yarn usage.
Related Standards:
STANDARDS | ISO 7211 | ASTM D3883 |
Note: this tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.
Features:
1, Manual testing mode;
2,Three length scale can be chose, 900 or 1250mm or 4 feet, customer need specified one of them when order;
3, Equipped with two tension weight can satisfy different kind of materials test requirement;
4, Simple operation;
5, Special design to fully according to ISO and ASTM standards.
Key Specification:
Calibration scale length
150±0.05mm | |
Scale length | 900 or 1250mm or 4 feet |
Length accuracy | 1mm |
Range of pre-tension | 0~35cN, 0~175cN |
Dimension | 1250×90×60mm (L×W×H) |
Weight | 15kg |
