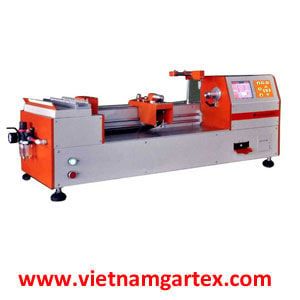

Máy đo độ xoắn của sợi Y331A-III Yarn Twist Tester

Máy đo độ xoắn của sợi Y331A-III Yarn Twist Tester

Y331A-III Yarn Twist Tester/ FYI Vietnam
Hãng sản xuất: Fanyuan Instrument

Thông tin sản phẩm:

Quick Details

• Place of Origin: China (Mainland)
• Brand Name: FYI
• Model Number: Y331A-III
• Power: Electronic
• Usage: Yarn twist tester
• Textile Sizing Machine: Yarn twist tester

Packaging & Delivery

Packaging Details:	Standard packaging
Delivery Detail:	4 WEEKS MAX

Specifications

1,Yarn twist tester
2, for yarn testing laboratory, determine yarn twist by conventional ,untwist/re-twist method

ITEM

Yarn Twist Tester

MODEL NO.

Y331A-III

Application:

YG331A-III  Yarn twist tester is a new type automatic tester for yarn testing laboratory, used to determine yarn twist by conventional or untwist/re-twist methods.

Related Standards:

STANDARDS	GB/T2543.1/2, 14345	ISO 2061
	FZ/T 10001	ASTM D1422/1423

Note: this tester can conform to but not limit to the standards above, for more standards conformance, please contact us.

Features:

• Special designed automatic guiding yarn device, combined of taking yarn manipulator and pneumatic sending yarn device to make sure work efficiency;
• Automatic zero adjustment with accurate positioning. Overcome the default caused by manual operation;
• 5.7’’ colorful touch screen with all parameters, clear and brief;
• Test result can be stored in 4G SD card and with the function of data review, query and print;
• Equip with built-in printer, result can be print out directly;
• Equip with data view software;
• Connect to PC is viable by optional software;

Key Specification of Yarn Twist Tester:

Test methods	1. Direct count; 2. Once twist/retwist method 3. Twice twist/retwist method; 4. Triple twist/retwist method
Smple length	100,250,500(mm) (selectable)
Range of test	1~9999.9 twist
Rotational speed	100~3000r/min (adjustable)
Extension range	<20mm
Max tubes of sample	20 tubes
Max testing times of each tube	20 times
Compressed air	0.5~0.8MPa
Power supply	AC220V 50Hz 400W
Dimensions	1500×400×300mm
Weight	60kg
