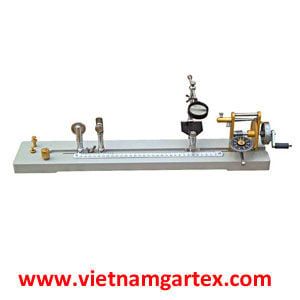

Yarn Twist Tester applies to determine yarn twist in double or plied yarns for conventional or twist/re-twist method manually. Test length adjustable up to 30cm/12inches for S & Z twist yarns.
Related Standards:
ADARDS
ISO 2061 |
Note: this tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.
Features:
1, Right yarn grip rotates two directions, clockwise and counterclockwise.
2,l Equipped with a magnifier to check the degree of the yarn’s parallelization.
3, Be able to add pre-tension.
4, The number of twist can be read out from dial plate directly.
Key Specification:
Sample length | 0~300mm (Adjustable) |
Range of twist test | 1~500 tex/10cm |
Twist graduate | 1/10 twist |
Unit system | metric |
Magnifier magnification | 6 times |
Max twist shrinkage | 20mm |
Pre-tension | 5cN, 10cN,20cN |
Drive model | manual |
Instrument Size | 600×120×200mm (L×W×H) |
Instrument Weight | 5.6kg |
