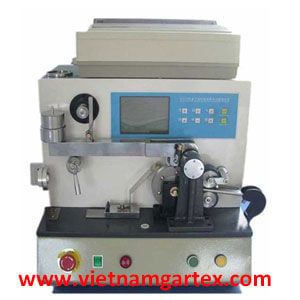

Máy đo độ đều của sợi DW0311D Evenness Tester

Mô tả

Thông tin sản phẩm:

Packaging Details:	Standard packaging
Delivery Detail:	30D MAX

Electronic Evenness Tester
1.Evenness tester
2.To determine the evenness of roving or silver.

Application:

Electronic Evenness Tester is used to determine the evenness of roving or silver.

Related Standards:

STANDARDS	WD 4001

STANDARDS

WD 4001

Note: this tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.

Features:

1 Adopt a micro-computer to control and LCD to display, with human-machine interfaces.

2 Be able to input various types of characters

3 Real-timely display the curve

4 Be able to save the data automatically in the case that the machine is out of power abruptly

5 Be able to retrieve 30 pieces of old data at most and print report forms or curve graphics

6 Testing environment does not need to meet the requirement of constant temperature and constant humidity.

7 Be able to examine specimens of different dielectric-coefficient fibers without being affected by the humidity of

different parts of specimens

8 Apply an electronic sensor to simple the operation and automatically carry out the test and the calculation

9 Be able to automatically calculate the unevenness rate R%

10 Be able to output CV% and wave spectrum graphics

Key Specifications:

Display	LCD
Measurement range	160~650tex
Resolution	0.01mm
Width of idler pulley slot	1.58mm and 3.17/4.60mm
Circumferential velocity of idler pulley	1950mm/min
Testing length	1~20m (digitally set)
Testing units	mm, μm, mil
Dimensions	590×450×510mm (L×W×H)
Power supply	AC220V 50HZ 60W
Weight	50kg
