Máy đo độ bóng cầm tay Konica Minolta Multi Gloss 268 Plus

Máy đo độ bóng cầm tay Konica Minolta Multi Gloss 268 Plus

Multi Gloss 268 Plus / Konica Minolta Vietnam
Hãng sản xuất: Konica Minolta

Konica Minolta là hãng của Nhật, chuyên cung cấp máy đo phân tích màu sắc cho các vật liệu như giấy, vải, nhựa.. Công ty BIS chúng tôi xin giới thiệu máy màu cầm tay Multi Gloss 268 Plus của Konica Minolta tại Việt Nam

Thông tin sản phẩm:

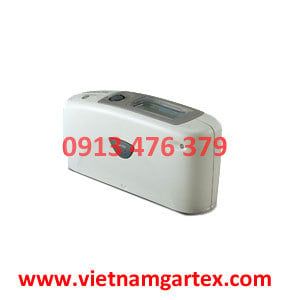

The Multi Gloss 268Plus is portable and compact gloss meter consisting of three measuring angles, each in accordance with DIN, ISO, ASTM, BS and JIS norms. The Multi Gloss 268Plus can perform each operation by using only two keys, rendering it extremely easy to operate. These operations include calibration, measurement, language settings, and statistics. You can measure various surfaces, from matte to high gloss, with the three measuring angles (20°, 60° and 85°). Additionally, up to 999 measurements can be stored and used for statistical calculations for extremely precise production control.

Model

	Multi Gloss 268Plus
Measurement geometry	20 degrees, 60 degrees, 85 degrees
Size of measurement spot	20° : 10 x 10 mm 60°: 9 x 15 mm 85° : 5 x 38 mm
Standard compliance	ISO 2813, ISO 7668, ASTM D 523, ASTM D 2457, DIN 67 530, JIS Z 8741, BS 3900, BS 6161(Part 12)
Measurement range	20°: 0.0"<2,000 GU 60°: 0.0"<1,000 GU 85°: 0.0"<160 GU
Resolution	0.0"<99.9 GU : 0.1 GU 100"<2,000 GU : 1 GU
Repeatability	0.0"<99.9 GU : 0.2 GU 100"<2,000 GU : 0.2% of reading
Inter Instrument agreement	0.0"<99.9 GU : 0.5 GU 100"<2,000 GU : 0.5% of reading
Memory	999 measurements with date and time
Difference measurement	Memory for 50 standard
Battery performance	Approx. 10,000 measurements (when using 1.5 V AA(R6)size alkaline battery)
Measurement time	0.5 seconds (each measurement)
Auto Power OFF	10-99 seconds select
Languages	English,Spanish,German,French,Italian,Japanese
Measurement mode	Normal mode (Sample mode, Statistics, Continuous, Basic mode), Difference mode
Interface	RS-232C format
Operating temperature/humidity range	15 to 40°C relative humidity 85% or less (at 35°C) with no condensation
Storage temperature/humidity range	-10 to 60°C relative humidity 85% or less (at 35°C) with no condensation
Power supply	1.5 V AA(R6)size alkaline battery
Dimensions	155(W) x 73(H) x 48(D) mm
Weight	400 g
