Máy đo ảnh phổ cầm tay CM-512m3a Konica minolta
Mô tả

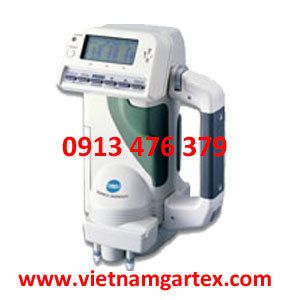

Máy đo ảnh phổ cầm tay CM-512m3a Konica minolta
CM-512m3a Spectrophotometer / Konica Minolta Vietnam
Hãng sản xuất: Konica Minolta
Konica Minolta
là hãng của Nhật, chuyên cung cấp máy đo phân tích màu sắc cho các vật
liệu như giấy, vải, nhựa.. Công ty BIS chúng tôi xin giới thiệu máy đo
ảnh phổ CM-512m3a của Konica Minolta tại Việt NamThông tin sản phẩm:
Model
| CM-512m3a | |
|---|---|
| Measurement Geometry | 3 angle circumferential illumination / 1 angle perpendicular viewing: 25° c:0°, 45° c:0°, 75° c:0° |
| Detector | Silicon photodiode array with continuous interference filter |
| Wavelength Range | 400 to 700 nm |
| Wavelength Pitch | 20 nm |
| Reflectance Range | 25° :0% to 300%, 45° and 75° :0% to 200% (Resolution: 0.01%) |
| Light Source | 3 pulsed xenon lamps |
| Minimum Measurement Interval | 3 seconds (when measuring a white calibration plate at 23°C) |
| Battery Life | Approx. 400 measurements at 10 second intervals (when a dark color is measured with alkaline batteries at 23° C) |
| Measurement/Illumination Area | 12 mm / 20 mm |
| Repeatability | Spectral reflectance: Within 0.3% (standard deviation) Chromaticity value: Within ΔE*ab 0.05 (standard deviation) (When a white calibration plate is measured 30 times at 10 second intervals after white calibration); When AC adapter is used |
| Interface | RS-232C; Terminal: D-sub 9-pin (female) |
| Display | Dot-matrix reflective LCD with 26 characters x 7 lines (240 x 96 dots) with adjustable contrast |
| Displayed Data | Colorimetric data: L*a*b*, L*C*h Color difference data: Δ(L*a*b*), Δ(L*C*H*), ΔE*ab, CMC(l:c), ΔE00(CIEDE2000) Other data display: FF value, line graph |
| Display Languages | English, Chinese (simplified) |
| Storable Data Sets | 440 data sets max. (total of sample and target data) |
| Illuminant/Observer Conditions | Light source: A, C, D50, D65, F2, F6, F7, F8, F10, F11, F12 Observer: 2°, 10° |
| Operating Temperature/Humidity Range (*1) | 0°C to 40°C, relative humidity 85% or less (at 35° ) with no condensation |
| Storage Temperature/Humidity Range | -20°C to 45°C, relative humidity 85% or less (at 35°C) with no condensation |
| Power | 4 AA-size alkaline or Ni-MH batteries or special AC adapter |
| Size | 115 (W) x 257 (H) x 164 (D) mm |
| Weight | Approx. 1.4 kg (without batteries) |
