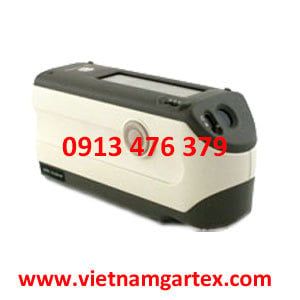

Máy đo ảnh phổ cầm tay CM-2500d Konica minolta
Mô tả
Máy đo ảnh phổ cầm tay CM-2500d Konica minolta
CM-2500d Spectrophotometer / Konica Minolta Vietnam
Hãng sản xuất: Konica Minolta
Konica Minolta
là hãng của Nhật, chuyên cung cấp máy đo phân tích màu sắc cho các vật
liệu như giấy, vải, nhựa.. Công ty BIS chúng tôi xin giới thiệu máy đo
ảnh phổ CM-2500d của Konica Minolta tại Việt NamThông tin sản phẩm:
Model
CM-2500D | |
---|---|
Model | CM-2500d |
Illumination / observation system | d/8 (diffuse illumination, 8° viewing ), equipped with simultaneous measurement of SCI (specular component included)/SCE (specular component excluded) Conforms to CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7 and JIS Z8722 Condition C standard. |
Sphere Size | Φ52mm |
Light-receiving element | Silicon photodiode array (dual 40 elements) |
Spectral separation device | Diffraction grating |
Wavelength range | 360nm to 740nm |
Wavelength pitch | 10nm |
Half bandwitdh | Approx. 10nm |
Reflectance range | 0 to 175%, resolution: 0.01% |
Light source | 2 pulsed xenon lamps |
Measurement time | Approx. 1.5 seconds |
Minimum interval between measurements | 3 seconds for SCI/SCE |
Battery performance | Alkaline manganese:approx. 1000 measurements |
Measurement/illumination area | MAV : Φ8mm/ Φ11mm |
Repeatability | Spectral Reflectance: Standard deviation within 0.1% (360 to 380nm within 0.2%) Colorimetric Value : Standard deviation within ΔE*ab 0.04(Measurement conditions:White calibration plate measured 30 x at 10-second intervals after white calibration was performed) |
Inter instrument agreement | within ΔE*ab 0.2 (MAV/SCI) Average for 12BCRA Series II color tiles compared to values measured with master body. |
UV adjustment | No UV adjustment |
Measurement mode | Single measurement/automatic averaging of multiple measurements(auto mode: 3, 5, 8 x/manual mode) |
Interface | RS-232C serial signals via RJ45 connector; USB 2.0 communication possible when using included USB-Serial Converter Cable IF-A24 |
Observer | 2/10 degrees (CIE 1931/2°,CIE 1964/10°) |
Illuminant | A, C, D50, D65, F2, F6, F7, F8, F10, F11, F12 (simultaneous evaluation is possible using two light sources) |
Display data | Spectral value/graph, colorimetric value, color difference value/graph, PASS/FAIL result |
Color space / colorimetric data | L*a*b*, L*C*h, CMC (1:1), CMC (2:1), CIE94, Hunter Lab, Yxy, Munsell, XYZ, MI, WI (ASTM E313), YI (ASTM E313/ASTM D1925), ISO Brightness (ISO 2470), Density statusA /T, WI/Tint (CIE/Ganz), CIE00 |
Data memory | 1700 pieces of data (as SCI/SCE 1 data) * 700 pieces of data in the "defined in COND." mode. * Total of the sample data for the COND and TASK modes and color diference target data |
Tolerance judgment | Tolerance for color difference (both box and eliptical tolerances can be set) |
Power source | 4 AA-size battery or AC adapter |
Size (W x;H x;D) | 69 x; 96 x; 193mm |
Weight | Approx. 670g (without batteries) |
Operating temperature / humidity range (*1) | 5 to 40°C, relative humidity 80% or less (at 35°C) with no condensation |
Storage temperature/humidity range | 0 to 45°C, relative humidity 80% or (at 35°C) with no condensation |
Standard accessories | White calibration plate, Target mask Φ8mm, Target mask Φ3mm , RS-232C cable, AC adapter,AA-size battery ( x;4) |
Optional Accessories | Hard case, Dust cover set, Dust cover, SpectraMagic trade;NX (software), Zero calibration box |
