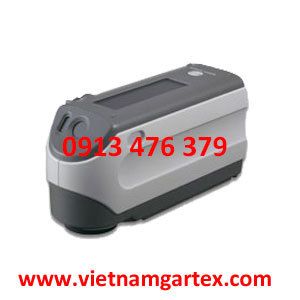

Máy đo ảnh phổ cầm tay CM-2500c Konica minolta
Mô tả
Máy đo ảnh phổ cầm tay CM-2500c Konica minolta
CM-2500c Spectrophotometer / Konica Minolta Vietnam
Hãng sản xuất: Konica Minolta
Konica Minolta
là hãng của Nhật, chuyên cung cấp máy đo phân tích màu sắc cho các vật
liệu như giấy, vải, nhựa.. Công ty BIS chúng tôi xin giới thiệu máy đo ảnh phổ CM-2500c của Konica Minolta tại Việt NamThông tin sản phẩm:
Model
CM-2500C | |
---|---|
Model | Spectrophotometer CM-2500c |
Illumination/observation system | 45/0 method (45° ring-shaped illumination, vertical viewing) |
Light-receiving element | Silicon photodiodearray (dual 40 elements) |
Spectral separation device | Diffraction grating |
Wavelength range | 360 nm to 740 nm |
Wavelength pitch | 10 nm |
Half bandwitdh | Approx. 10 nm |
Reflectance range | 0 to 175%, resolution: 0.01% |
Light source | 2 pulsed xenon lamps |
Measurement time | Approx. 1.5 seconds |
Minimum interval between measurements | 4 seconds |
Battery performance | Alkaline manganese: Approx. 1000 measurements, (at 23°C) |
Measurement/illumination area | Φ7 mm/ Φ11 mm |
Repeatability | Colorimetric Value: Standard deviation within Delta;E*ab 0.05 (Measurement conditions: White calibration plate measured 30 times at 10-second intervals after white calibration was performed) |
Inter instrument agreement | Within ΔE*ab 0.25 (Average for 12 BCRA Series II color tiles compared to values measured with master body; at 23°C) |
Measurement mode | Single measurement/automatic averaging of multiple measurements (auto mode: 3, 5, 8 times/manual mode) |
Interface | RS-232C serial signals via RJ45 connector; USB 2.0 communication possible when using included USB-Serial Converter Cable IF-A24 |
Observer | 2/10° (CIE 1931/2°, CIE 1964/10°) |
Illuminant | A, C, D50, D65, F2, F6, F7, F8, F10, F11, F12 (simultaneous evaluation is possible using two light sources) |
Display data | Spectral value/graph, colorimetric value, color difference value/graph, PASS/FAIL result, ASSESSMENTS (Except for Japanese mode) |
Color space/colorimetric data | L*a*b*, L*C*h, CMC(1:1), CMC(2:1), CIE94, Hunter Lab, Yxy, Munsell, XYZ, MI, WI (ASTM E313), WI (CIE), YI (ASTM E313/ASTM D1925), ISO Brightness (ISO 2470), Density status A/T, WI/Tint (CIE), CIE 00 |
Data memory | 700 |
Pass/Fail judgment | Tolerance for color difference (Both box and elliptical tolerances can be set) |
Power source | 4 AA-size batteries or AC adapter |
Size | (W × H × D) 69 × 96 × 193 mm |
Weight | Approx. 670 g (without batteries) |
Operating temperature/humidity range | 5°C to 40°C) with no condensation |
Storage temperature/humidity range | 0°C to 45°C) with no condensation |
