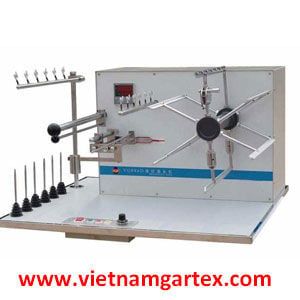

Máy đếm sợi YG086D Yarn Wrap rell
Mô tả
Máy đếm sợi YG086D Yarn Wrap rell
Electronic Yarn Wrap Rell YG086D/E / FYI Vietnam
Hãng sản xuất: Fanyuan Instrument
Thông tin sản phẩm:Specifications
1.Electronic Yarn Wrap Reel2. Hot Sale
3.Fast delivery good service
ITEM
Electronic Yarn Wrap Reel
Application
Wrap Reel Electronic. To produce skeins of yarn of a pre-determined length and number of turns for count and/or strength testing. Complete with yarn package stand and pre-tension device, fitted with pre-determined counter.
RELATED STANDARDS:
STANDARDS | ISO 2060.2 |
FEATURES:
1 Use MCU to control unit, allow numeric programming parameter (such as speed, bobbin number, reel presetting parameters are pre-settable), and auto tracking speed of reel, have two startup model (hard startup, soft startup), all make unit work consistently and stably;
2 Precision DC speed regulating motor with synchromesh belt makes precisely positioning;
3 Numeric speed controlling panel, make unit work consistently and stably;
4 Two optional startup mode (hard startup, soft startup), do not break yarn when startup;
5 Electronic limit trips, total rev number and user programmable stops;
6 Closed-loop controlled and speed tracking system, Ensure to keep even speed when Voltage is variable.
KEY SPECIFICATION:
Reel circumference | 1000mm (metric system), 54(English system) |
Rev of reel: | 25-300 RPM (numeric pre-settable) |
Interval of spindle: | 65mm |
Number of wrap: | 2~9999 Rev(pre-settable) |
Programmable stop: | 1~9 rev(pre-settable) |
Traveling reciprocating distance: | 35mm±1mm |
Reeling pre-tension: | 0~100cN (pre-settable) |
Instrument Size: | 780×660×480mm |
Instrument weight: | 50kg |
