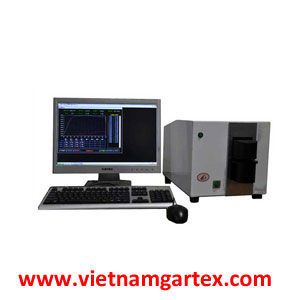

Hệ thống đo sự chống tia UPF và UV của vải YG902

Hệ thống đo sự chống tia UPF và UV của vải YG902

YG902 UPF and UV Penatration/ Protection Measurement System / FYI Vietnam
Hãng sản xuất: Fanyuan Instrument

Thông tin sản phẩm:

Specifications

1.UPF and UV penetration/protection measurement system
2.Provide average value of T(UVA), T(UVB), UPF ;

Application:

Determine the ability to block UVR and measure UPF of fabric directly. A fast, simple-to-use and accurate spectrophotometer dedicated to measure the UPF (Ultraviolet Protection Factor) of fabric samples. The tester can capture the spectral transmittance of sample from 280~400nm in seconds, reporting the UPF as well as the mean UVA and UVB transmittance.

Related Standards:

STANDARDS

AATCC183-1998

PREN13758-2001

AS/NZS4399-1996

GB/T18830

Note: this tester can conform to but not limit to the standards above, for more standards conformance, please contact us.

Features:

1         Operated from a PC with Windows system;

2        The measurement process is automatic and automatically generates scan reports which can be printed;

3         Provide average value of T(UVA), T(UVB), UPF ;

4         The test result presents by the colorized curve;

5        Suitable for many kinds of fabrics;

6        Users may choose the corresponding standard before the experiment;

7         High accuracy, testing wavelength resolution is 1nm;

8         Special designed sample holder, sample no need to be cut out, accomplish NDT (Non Destructive Test );

9        Real time display of on-going testing with data, curve.

Key Specification:

1        Testing wavelength                            280nm~400nm

2        UVA transmittance ratio                        T(UVA) (315~400nm)

3        UVB transmittance ratio                        T(UVB) (280~315nm)

4       UV protection factor                           UPF

5         Sample holder height                           12mm

6        Testing wavelength resolution                    1nm

7         Dimension                                   540×350×300mm(L×W×H)

8       Power supply                                 220V 50Hz 200W
