| Packaging Details: | Standard packaging |
|---|---|
| Delivery Detail: | 4 WEEKS MAX |
Application:

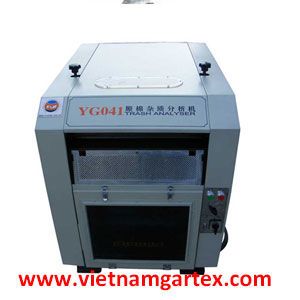

YG041 Cotton Trash Content Analyzer is used to determine the impurity content of raw cotton, cotton rolls, card sliver and
defect rate of chemical fibre.
The machine uses the specific gravity differences of fibre and impurities to separate the fibre after carding from impurities under the action of air flow and centrifugal force.
It consists of feed roller, licker-in, air blower, actuating device, etc.
Related Standards:
STANDARDS | GB/T6098 |
Note: this Cotton Trash Content Analyzer can conform to but not limit to all the standards above, for more standards conformance, please contact us.
Key Specification
| Machine width | 490mm |
| Feed roller | |
| Diameter | 57.15mm |
| Speed | 0.9rpm |
| Licker-in | |
| Diameter | 238.76mm |
| Speed | 900rpm |
| Separation between feed plate and licker-in | 0.18-0.23mm |
| Separation between mote knife and licker-in | 0.53-0.61mm |
| Separation between fairing plate and licker-in | 0.15-0.23mm |
| Gap of air flow adjusting plate | 0.20-0.40mm |
| Power supply | AC380V 60Hz |
| Dimension | 1019*715*874mm (L*W*H) |
| Weight | 280kg |
| Cotton Trash Content Analyzer | YG041 |
