Application:

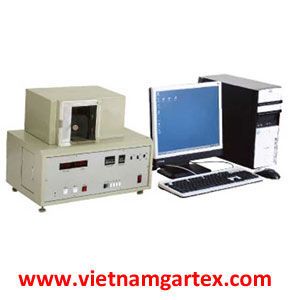

FY111F Fibre Crimp Testing Equipment is suitable to determine crimping performance of single chemical fibre and natural fibre. It is widely used in production enterprises, testing organizations and scientific research units for chemical fibre, textile, etc.
It adopts the image processing technology to automatically count the number of crimps of the fibre under light load and in length of 25mm;
Measure load value by load cell and fibre length under given light or heavy load to calculate crimp ratio of fibre;
Determine fibre length after relaxation due to the effect of heavy load to calculate crimp elastic recovery rate.
Related Standards:
STANDARDS | GB/T 14338-1993 |
Note: this Fibre Crimp Tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.
Key Specification
| Load measurement range | 0~2000(10-3cN) |
| Load resolution | 0.1(10-3cN) |
| Load measurement error | ≤±1% |
| Clamping length | 20mm |
| Stroke of lower clamp | 40mm |
| Length resolution | 0.01mm |
| Timing | auto |
| Measurement of crimp No. | auto |
| Crimp counting length | 25mm |
| Power supply | 220V±10% |
| Dimensions of main machine | 510*340*420mm |
| Weight of main machine | 20kg |
| Fibre crimp testing equipment | FY111F |
Features:
1. Automatically determine crimp ratio, crimp elastic recovery rate and number of crimps;
2. Quick test, high accuracy, easy to operate;
3. Equipped with computer and printer.
