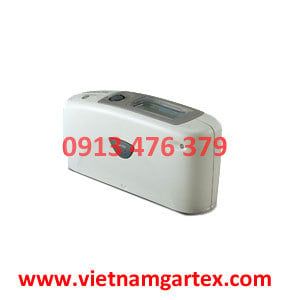

Máy đo độ bóng cầm tay Konica Minolta Multi Gloss 268 Plus
Mô tả
Máy đo độ bóng cầm tay Konica Minolta Multi Gloss 268 Plus
Multi Gloss 268 Plus / Konica Minolta Vietnam
Hãng sản xuất: Konica Minolta
Konica Minolta
là hãng của Nhật, chuyên cung cấp máy đo phân tích màu sắc cho các vật
liệu như giấy, vải, nhựa.. Công ty BIS chúng tôi xin giới thiệu máy màu
cầm tay Multi Gloss 268 Plus của Konica Minolta tại Việt NamThông tin sản phẩm:
The Multi Gloss 268Plus is portable and compact gloss meter consisting of three measuring angles, each in accordance with DIN, ISO, ASTM, BS and JIS norms. The Multi Gloss 268Plus can perform each operation by using only two keys, rendering it extremely easy to operate. These operations include calibration, measurement, language settings, and statistics. You can measure various surfaces, from matte to high gloss, with the three measuring angles (20°, 60° and 85°). Additionally, up to 999 measurements can be stored and used for statistical calculations for extremely precise production control.
Model
Multi Gloss 268Plus | |
---|---|
Measurement geometry | 20 degrees, 60 degrees, 85 degrees |
Size of measurement spot |
20° : 10 x 10 mm 60°: 9 x 15 mm 85° : 5 x 38 mm |
Standard compliance |
ISO 2813, ISO 7668, ASTM D 523, ASTM D 2457, DIN 67 530, JIS Z 8741, BS 3900, BS 6161(Part 12) |
Measurement range |
20°: 0.0"<2,000 GU 60°: 0.0"<1,000 GU 85°: 0.0"<160 GU |
Resolution |
0.0"<99.9 GU : 0.1 GU 100"<2,000 GU : 1 GU |
Repeatability | 0.0"<99.9 GU : 0.2 GU 100"<2,000 GU : 0.2% of reading |
Inter Instrument agreement | 0.0"<99.9 GU : 0.5 GU 100"<2,000 GU : 0.5% of reading |
Memory | 999 measurements with date and time |
Difference measurement | Memory for 50 standard |
Battery performance |
Approx. 10,000 measurements (when using 1.5 V AA(R6)size alkaline battery) |
Measurement time | 0.5 seconds (each measurement) |
Auto Power OFF | 10-99 seconds select |
Languages | English,Spanish,German,French,Italian,Japanese |
Measurement mode | Normal mode (Sample mode, Statistics, Continuous, Basic mode), Difference mode |
Interface | RS-232C format |
Operating temperature/humidity range | 15 to 40°C relative humidity 85% or less (at 35°C) with no condensation |
Storage temperature/humidity range | -10 to 60°C relative humidity 85% or less (at 35°C) with no condensation |
Power supply | 1.5 V AA(R6)size alkaline battery |
Dimensions | 155(W) x 73(H) x 48(D) mm |
Weight | 400 g |
