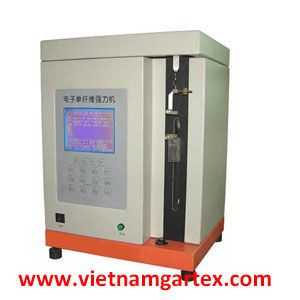

Máy đo độ bền xơ bông YG001E
Mô tả
Máy đo độ bền xơ bông YG001E
YG001E Electronic Single Fibre Strength Tester / FYI Vietnam
Hãng sản xuất: Fanyuan Instrument
Thông tin sản phẩm:Specifications
Electronic single fiber strength testing machine. Suitable to test the tension of many kinds of fiberMODEL NO.
YG001E YG003E YG005E
Application:
Electronic single fiber strength testing machine. Suitable to test the tension of chemical fiber, cotton, wool, ramie, silk, glass fiber, fine metallic thread, etc.
Related Standards:
STANDARDS | ISO 5079 |
Note: this tester can conform to but not limit to the standards above, for more standards conformance, please contact us.
Features
l Blue LCD panel, real time display testing result;
l Real time display of on-going testing with data, curve by personal computer; and data by the LCD;
l Printer interface, operator can use LCD control panel to control the machine and print out testing data by stylus printer without PC, and can use the PC control the machine also (bidirectional controlling);
l Use 16bit MCU(Mitsubishi, Japan);
l Force unit: N, Kgf, lb, in, cN can be switched freely with support of computer and accessorial software;
l Tension for loading and pretensioning, 12 pcs (two pieces for each of 0.1cN, 0.15cN, 0.2cN,0.3cN, 0.4cN and 0.5cN);
l High accuracy;
l Fast response;
l Easy to load and unload specimen;
l Lightweight electric holders easy to operate (YG005E) ;
l Add function of creep and relaxation (YG003E)
Specification:
Capacity | 500.00cN |
Load cell accuracy | ≤±0.05%F.S |
Load measurement accuracy | ±1% for 2%~120% of load cell capacity |
Speed | 2~200mm/min(adjustable) |
Max crosshead travel | 100mm |
Elongation resolution | 0.1mm |
Positioning method | Digital and automatic |
Force unit | N, cN, Kgf, lb, in |
Data storage | ≥4000 sets |
Dimension | 370×300×350mm(L×W×H) |
Power supply | 220V 50Hz 200W |
Weight | 85Kg |
Holder | manual (Y001E , Y003E) electric (Y005E) |
